Robinson R22 helicopter redesign

The Robinson R22 is a two-bladed, single-engine light utility helicopter manufactured by Robinson Helicopter Company. The two-seat R22 was designed in 1973 by Frank Robinson and has been in production since 1979.  The basic structure is welded chromoly steel tubing. The forward fuselage is made of fiberglass and aluminum with a Plexiglas canopy. The tailcone and vertical and horizontal stabilizers are aluminum. It has an enclosed cabin with side-by-side seating for a pilot and passenger.

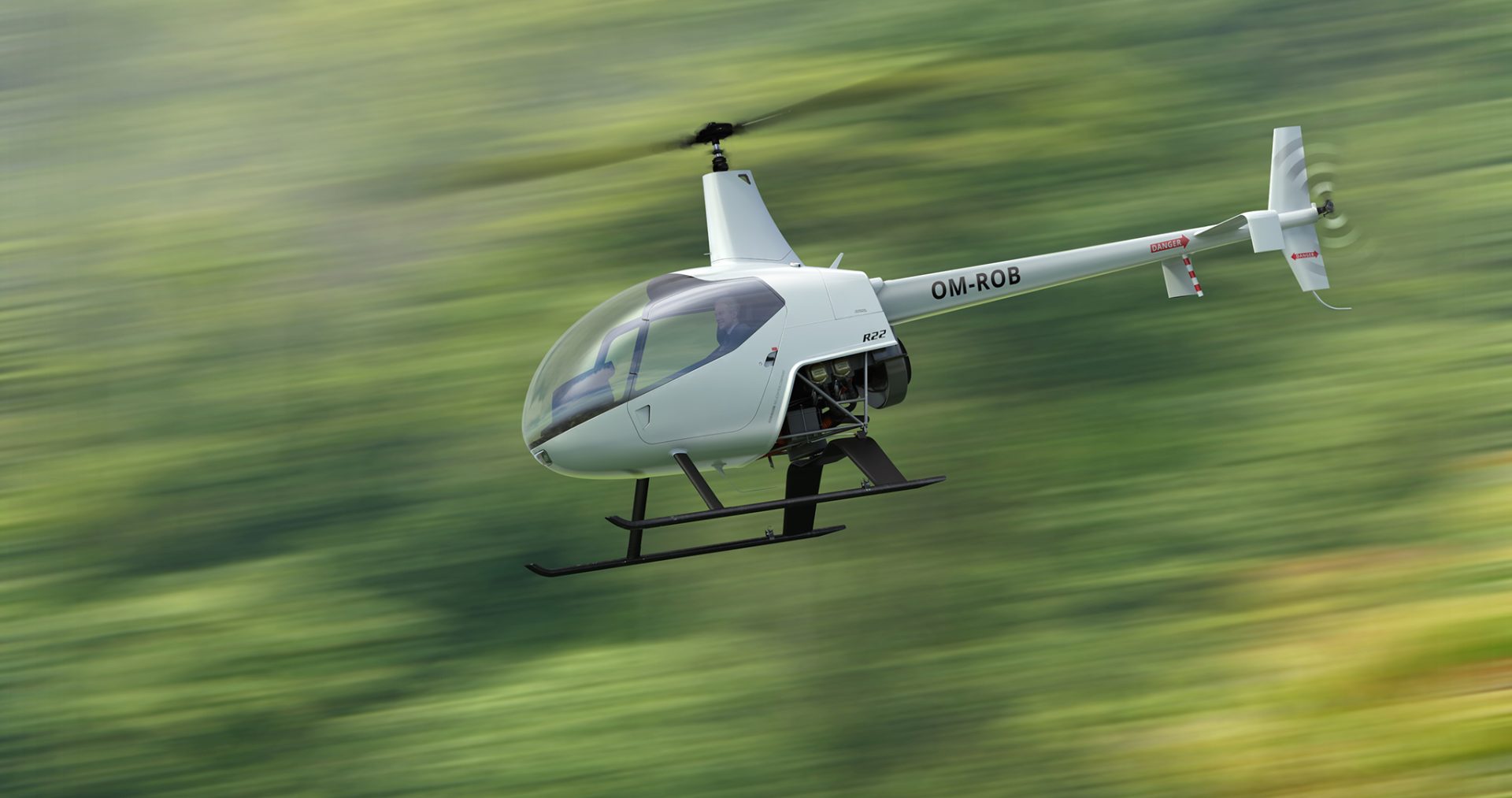

This is my concept of the modernisation or redesigning of this beautiful helicopter. Idea was to create more modern looking helicopter. I was redesigned the main graphic element of the canopy and doors.

  • Date

    April 8, 2020

  • Skills

    design, CAD model, visualization

  • Client

    Personal project
